1st Molar Single Non-Convertible
4.2mm M–D with a large, indented mesh base pad.
Package of 10 individual tubes.
Works seamlessly with miniPrevail® Twin and miniPrevail® SL bracket systems.
Made in the U.S.A by G&H® Orthodontics
Engineered with the patient and orthodontist in mind
Available in Bondable or Weldable designs

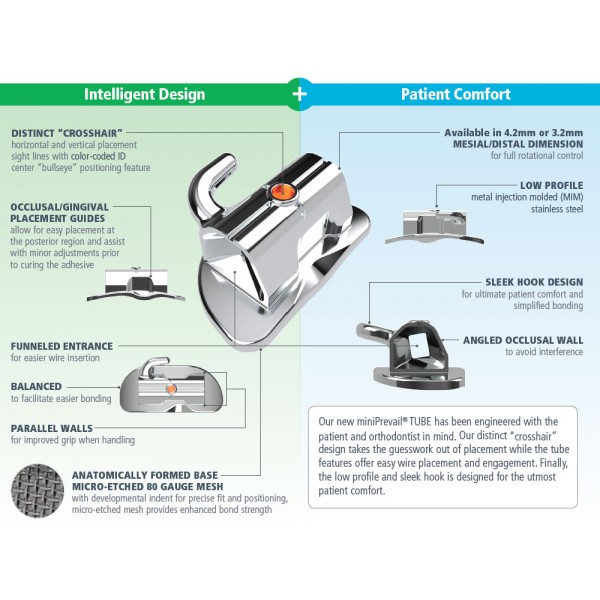

Features include:
- Low profile and sleek hook is designed for the utmost patient comfort
- Distinct "crosshair" horizontal and vertical placement sight lines
- Balanced to facilitate easier bonding
- Anatomically formed base with developmental indent for precise fit and positioning
- Mirco–etched, 80–gauge indented mesh pad with an anatomically formed fit and maximum bond strength
Developmental Indent
Because precise positioning is critical in establishing an effective treatment and avoiding occlusal interference with opposing teeth, we designed our bond pads with pronounced developmental indents to make locating the optimal bonding position a snap.
Molded Compound Contour Base
Anatomically conforms to the tooth and provides proper fit and appliance expression.
80–Gauge Mesh
Featuring an 80–gauge mesh base in two different pad configurations, our direct bond tubes are sure to meet all of your treatment needs.

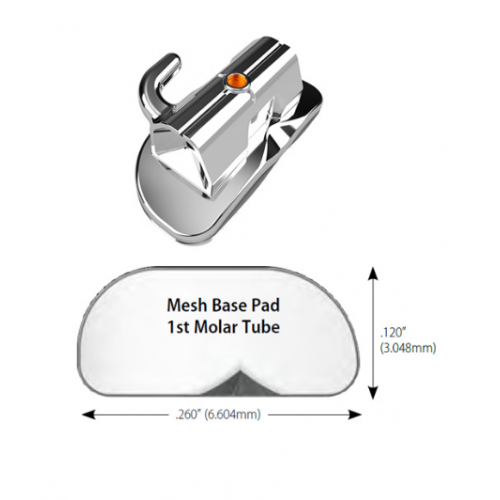

Large Indented Pad (1st Molar)
Small Indented Pad (2nd Molar)
Maxillary
| Torque |
Offset |
Rx |
M–D |
| 0° |
0° |
Edgewise |
4.2mm or 3.2mm |
| -10° |
8° |
Roth |
4.2mm or 3.2mm |
| -14° |
10° |
MBT |
4.2mm or 3.2mm |
| -10° |
0° |
MBT |
4.2mm or 3.2mm |
Mandibular
| Torque |
Offset |
Rx |
M–D |
| 0° |
0° |
Edgewise |
4.2mm or 3.2mm |
| -25° |
5° |
Roth |
4.2mm or 3.2mm |
| -20° |
0° |
MBT |
4.2mm or 3.2mm |
| -10° |
0° |
MBT |
4.2mm or 3.2mm |
*G&H prescriptions are not implied to be an exact version of any other system, nor do we claim any endorsement by the doctor.
