Precision welding at its finest: introducing the PUK 6 Welder with SMG5 Microscope, Articulating Arm and Flow Regulator
Newest member of the PUK family of welders, the PUK 6 gives jewelers not only the power to handle larger welding jobs, the accuracy required for delicate tasks, but also the technology and ergonomics to make welding easy and comfortable. When you touch your workpiece to the electrode tip, a gas valve opens and an electric arc strikes the welding point. Immediately, the electrode withdraws into the handpiece for a preselected amount of time before extending again. All you need to do is adjust your workpiece as the PUK sends repeated individual pulses to form a bead. You can adjust the size and direction of the welds by manipulating the angle at which the electrode touches your workpiece. To stop welding at any point, just move your workpiece away from the electrode tip. This is an intuitive solution that gives you complete control over the process and prevents any mistakes. Made In Germany.
Key Features:
Up to 3.3 welding spots per second: Welding sequence now up to 65% faster
Smoother, more homogeneous weld spots – excellent weld seam even with variable weld spot gaps
Higher heat input where needed: Perfect welding results even with critical materials
50% smaller welding spots in low power range
Minimal pulse duration now down to 0.1ms: 67% shorter welding time in micro mode
Standby mode: Continuous availability with 85% lower energy consumption
Patented welding process control prevents errors and enables even faster learning of PUK welding
Improved micro-mode helps you to achieve new welding possibilities with finer increments in the lowest performance range

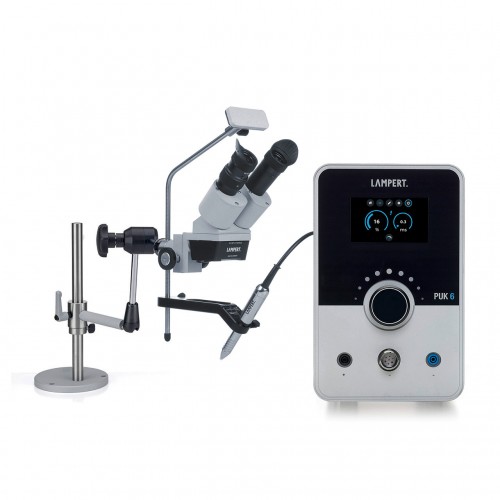

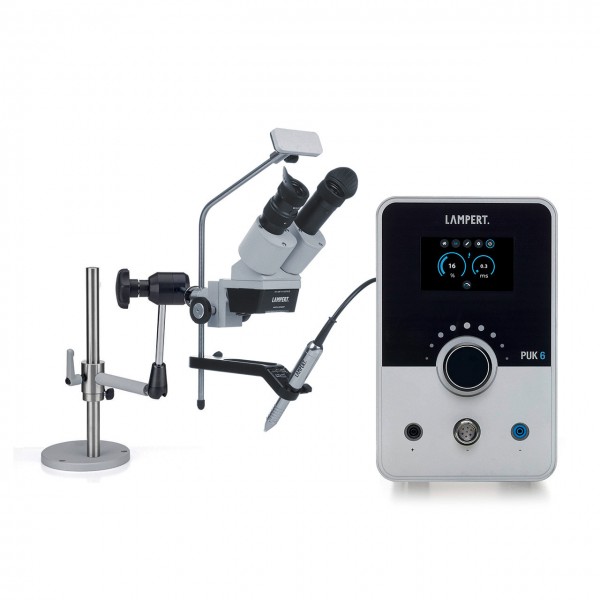

This PUK 6 with Welding Microscope SMG5 and Articulating Arm package includes:
PUK 6 Welding Unit - LxWxH: 365x190x305mm (approx.14.4"x7.5"x 12")
PUK 6 Precision Handpiece
PUK Flow Regulator (so important for yielding excellent welding results)
10X Welding SMG5 Microscope with Articulating Arm (when not welding, also use as an extra microscope)
Electrode Grinding Motor (makes it easy to have the best contact)
Electrodes: 2 of the 0.6mm, 4 of the 0.8mm, and 2 of the 1mm sizes
Diamond Grinding Wheel
Alligator Clip
9’ Gas Hose
