Tuttnauer T-Top 10 S Autoclave Steam Sterilizer with 10" chamber. 4 trays.
5.5 gallon / 21 Liter Large Chamber Capacity with Class S
Product code: NT-TOP10S
Cloud based paperless software, T-Top devices feature the exclusive and technologically advanced T-Connect, a cloud, based IoT solution for your sterilization center.
WARRANTY: 24 months parts and labor
Large 21 Liter chamber. Class S Sterilizer (Closed-Door Drying) Maximum efficiency. Sterilize more in a single cycle to free up your time to treat patients.
Designed to meet all the most current sterilization standards ANSI/AAMI ST55 ensuring highest sterilization levels and highest quality constructions to ensure longevity.
Features:
Low Cost - Top Performance - Plug & Play
Class S Sterilizer (Closed-Door Drying)
Short & Fast Cycles: 25 Minute unwrapped instruments complete cycle, w/drying (immediate use)
Optimal chamber capacity: More than 80% chamber capacity extra-long trays
Separate water reservoirs for clean/used water, ensuring clean water is used with each cycle.
T-Connect: Advanced Remote Diagnostics: Wi-Fi: Monitor you autoclave via smartphone or tablet app
Advanced documentation: A variety of documentation and traceability options and barcodes
User-friendly touch screen control panel: Displays programs, cycles times, water levels and more
Note: This model uses the same technology as the T-Edge 10B but with a larger chamber
Technical Specifications
Chamber Size: 10(W)" x 18(D)"
Volume: 21L

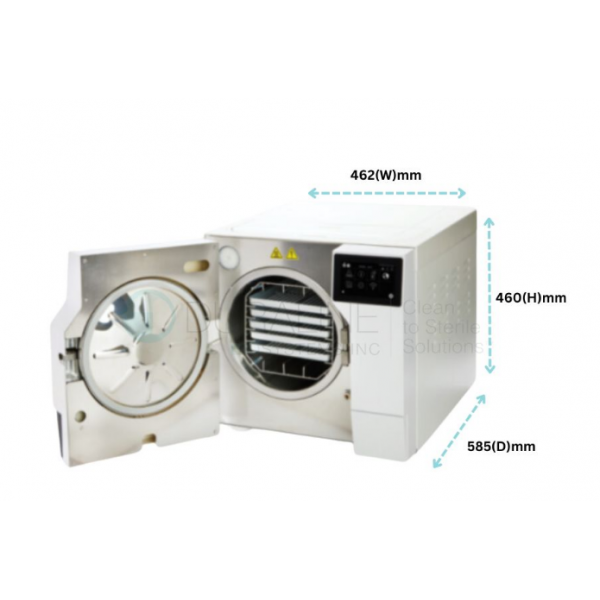

Overall Dimensions: 23(D)" x 18.1(W)" x 18(H)"
Water Filing: Manual
LCD Multicolor user-friendly touch screen with intuitive icons

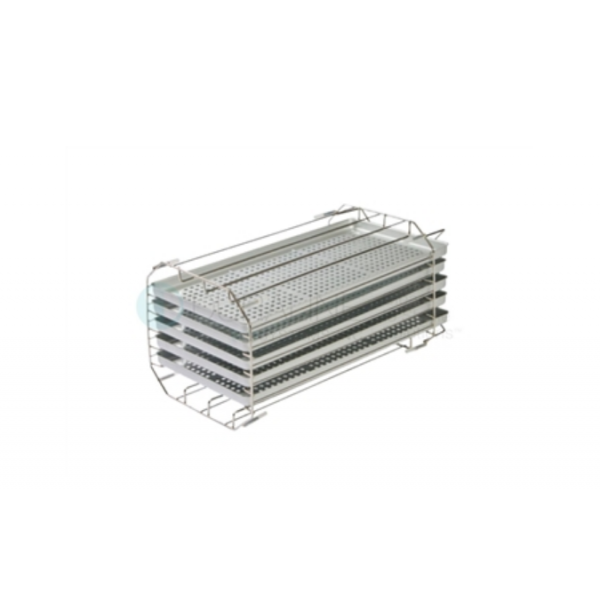

Trays: 4
Tray Dimensions: 14.7(D)" x 7.3(W)" x 0.6(H)"
Voltage: 110-120V
Frequency: 50-60Hz
Power: 1700W
Shipping Weight: 110 lbs
Digital Connections:
1 ethernet port, 2 USB Ports
Wi-Fi connection & T-Connect software.
Remotely access cycle history
Paperless documentation
Sterilization Cycle Programs - Sterilization time (w/ Drying) *
Unwrapped 273°F
25min - Unwrapped Instruments - For immediate use
Wrapped 273°F
56min - Wrapped Pouches - For Storage
Unwrapped 250°F
46min - Unwrapped Delicate Instruments - For immediate use
Wrapped 250°F
72min - Wrapped Delicate Instruments - For storage
Wrapped 250°F / 2kg - 42min - Small Loads of up to 4.4 lbs.- For quick turnaround.
