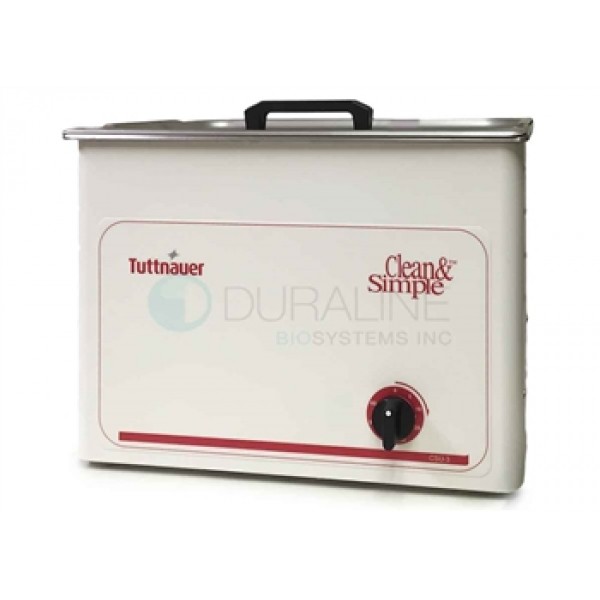

Tuttnauer's CSU3 Clean and Simple™ 3-Gallon Ultrasonic Cleaners use ultrasonically-generated cavitation (the creation of small, implosive bubbles) to clean instruments and equipment of soil and contamination. With a 60 kHz frequency, the Clean & Simple™ Ultrasonics are quieter and gentler than ultrasonics that operate at lower frequencies, while still being quite effective at cleaning. A duration of 0 to 60 minutes can be set for the cleaning cycles of the Tabletop Ultrasonic Machines with the timer dial on the front.
The CSU3 Ultrasonic Baths have a capacity for 3 gallons of water or cleaning solutions, providing enough space for loose instruments or for 3 full-size cassettes. A stainless steel basket is available for use with the Clean & Simple™ Ultrasonic Machine - See accessories below. The Desktop Ultrasonic Washers feature a scratch-resistant, vinyl-coated steel exterior with a stainless steel tank. The Tuttnauer Ultrasonics are easy to clean for minimal maintenance. A removable lid with handle enables proper covering of the Ultrasonic Tank.
The 3-Gallon Benchtop Ultrasonics are available without heat as the standard CSU3 model. The CSU3H model of Ultrasonic Tank includes a built-in heater to meet the specifications of various cleaning solutions.
Ultrasonics by Tuttnauer are proudly made in the USA.
Features:
- Uses cavitation of water or cleaning solution to dislodge soil
- 60 kHz frequency for quiet, powerful cleaning
- Less aggressive and damaging than other ultrasonics
- 3-gallon capacity
- Sized to fit loose instruments or 3 full-size cassettes
- Timer dial for 0 to 60 minutes per cycle
- Available with or without heater
- Vinyl-coated steel exterior resists scratching
- Stainless steel tank
- Easy to clean
| Model |
Tank Dimensions
W x H x D
(inches/cms) |
External Dimensions
W x H x D
Inches (cms) |
Tank Capacity
Gallons
(Liters) |
| CSU1 |
9.38 x 4.0 x 5.38
23.83 x 10.16 x 13.67 |
10.25 x 8.25 x 6.5
26.03 x 20.9 x 516.51 |
0.85
3.2 |
| CSU1H |
9.38 x 4.0 x 5.38
23.83 x 10.16 x 13.67 |
10.25 x 8.25 x 6.5
26.03 x 20.9 x 516.51 |
0.85
3.2 |
| CSU3 |
15.5 x 6.0 x 9.0
39.37 x 15.24 x 22.86 |
16.5 x 12.13 x 10.0
(41.91 x 30.81 x 25.4) |
3.25
12.3 |
| CSU3H |
15.5 x 6.0 x 9.0
39.37 x 15.24 x 22.86 |
16.5 x 12.13 x 10.0
(41.91 x 30.81 x 25.4) |
3.25
12.3 |
Note: CSU1H and CSU3H models heat up
- Tank Capacity: 3.25 gallon (12.3 L)
- Inside Dimensions (LxWxH): 15.5" x 9" x 6"
- Outside Dimensions (LxWxH): 16.5" x 10" x 12.13"
